RICHFIELD EQUIPMENT: WASHERS AND VACUUMS

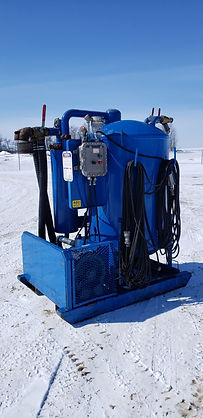

MUD VAC SYSTEM
Mud vac_edited.jpg
  • Power: 480V or 575V, 25hp 3 phase electric motor

  • Remote power switch

  • Timed shut off

  • Tank Liquid Capacity: 10 barrels (1.8 cubic metres)

  • Auto discharge

  • Dimensions: 4' X 14' (1.22m X 4.27m)

  • Weight: 3500 lbs (1600 kg)

Premix 029.jpg
MUD VAC SHACK
  • Electric or Ruffneck Steam Heater

  • Lights

  • Protects Mudvac from adverse weather conditions

  • Dimensions: 16' L X 6' W X 7' H

  • Weight: 4000 lbs (1818 kg)

SPLIT MUD VAC
  • Power: 480V or 575V, 25HP, 3 phase electric motor

  • General environment clean up, such as mud pumps etc.

  • Capacity: one cubic metres

  • Unit separates allowing placement of the tank in the sub structure, and the power unit away from the critical areas making it safer.

  • Explosion proof

  • 2", 3"suction and 3" discharge

  • Fruitland 500 pump

  • Dimensions: 8 ½' L X 4' W X6 ½' H

  • Weight: 3000 lbs (1365kg)

REGENERATIVE FAN
MUDVAC
  • Power: 10HP 480V 3Ph XP blower unit

  • Capacity: 1.0 Cubic meter tank

  • Features: Lightweight, small footprint, quiet operation, no maintenance req'd.

  • Dimensions: 70"L x 48"W x 88"H

  • Weight: 1365kg / 3000lbs

POLYSHEARS
  • Polyshear Mixers

  • Usages: Quick mix polymers, clays or chemicals to a smooth homogeneous mixture. Fast complete blending of viscosifiers, XC, XCD polymers, drispac, etc. Eliminates shaker screen blinding from "fish eyes" or unmixed product.

  • Sizes: Available in 6 inch (152mm) and 4 inch (102 mm) sizes

  • 6" - Overall Length: 30" (cut out 36 1/4") - Shipping weight: 100lbs (45.5 kg)

  • 4" - Overall Length: 24" (cut out 30 1/4") - Shipping weight: 60lbs (27 kg)

  • Power Shears

  • Motor driven shears are also available if mixing pump volumes are too low


EQUIPMENT/SAMPLE
WASHER
  • Power: 5 H.P, 3 phase, 208 V XP rated motor/ Belt driven CAT triplex pump.

  • Clear blinded rig shaker and shale dryer screens

  • Sample Washing

  • General Cleanup around rig

  • Modified low pressure screen cleaning units available that reduce vaporization of cleaning agents

  • Dimensions: 1 cubic meter tank
