EQUIPMENT RENTALS

COMBINATION CENTRIFUGE

FLUID PROCESSING UNIT

Richfield's Combination Centrifuge and Processing unit is designed to be totally self contained & easily moved for shallow drilling & No Disturb locations.

With one load using a winch tractor & lowboy trailer, the unit can be moved into position & set up easily within 20 minutes.

The Combination Centrifuge provides everyting required for dewatering, clear water drilling & solids containment.

No picker required.

Features

Low profile to fit lower mud tanks
One tank has four compartments
Completely self contained
Highly mobile
No picker required
Adjustable weir system
Mud gun in front compartment for liquefying solids in no disturb locations

Uses

De-watering System, clear water drilling, solids containment,
Shale containment for No Disturb locations

Specifications

Length: 50'
Width: 12' 6"
Volume Capacity: 400 barrels/64 cubes
Weight: 21,000 Kg (with one SS1000 Centrifuge)

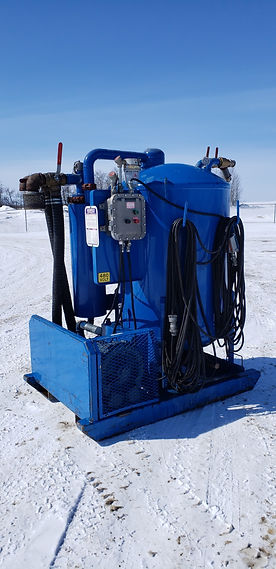

REGENERATIVE FAN MUDVAC

Power: 10HP 480V 3Ph XP blower unit
Capacity: 1.0 Cubic meter tank
Features: Lightweight, small footprint, quiet operation, no maintenance req'd.
Dimensions: 70"L x 48"W x 88"H
Weight: 1365kg / 3000lbs

MUD VAC SHACK

Electric or Ruffneck Steam Heater
Lights
Protects Mudvac from adverse weather conditions
Dimensions: 16' L X 6' W X 7' H
Weight: 4000 lbs (1818 kg)

SPLIT MUD VAC

Power: 480V or 575V, 25HP, 3 phase electric motor
General environment clean up, such as mud pumps etc.
Capacity: one cubic metres
Unit separates allowing placement of the tank in the sub structure, and the power unit away from the critical areas making it safer.
Explosion proof
2", 3"suction and 3" discharge
Fruitland 500 pump
Dimensions: 8 ½' L X 4' W X6 ½' H
Weight: 3000 lbs (1365kg)

MUD VAC SYSTEM

Power: 480V or 575V, 25hp 3 phase electric motor
Remote power switch
Timed shut off
Tank Liquid Capacity: 10 barrels (1.8 cubic metres)
Auto discharge
Dimensions: 4' X 14' (1.22m X 4.27m)
Weight: 3500 lbs (1600 kg)

INJECTION UNIT

Injection Unit / Oxygen Scavenger
Usage:
Mix and Inject Sodium Sulfite or Ammonium Bisulfite
Specifications: Adjustable Diaphragm Pump, Max. Rates 12.3 GPH (46.6 LPH) @100 PSI
11.6 GPH (44.0 LPH) @350 PSI
Capacity 500 Litres
Features: Fits inside pumphouse
Dimensions: 30' L X 30' W X 42' H
Weight: Lightweight

VORTEX 3000M SHALE DRYER

Uses 4 pre-tensioned screens giving this unit an industry leading 30 sq. ft. of screening area
Front/Rear Cranks, deck to negative 6, positive 8 degrees of screen deck inclination and also provide up to 12" of vertical height adjustment.
Orbital motors are factory set at 5.6g's (80-85% duty cycle) and capable of generating 6.7g's at 100% duty cyle
Screen deck surface features polyurethane, high analine content, oil resistant screen cushions
Screens available in mesh sizing from #8 to #400
Can be mounted in drive-in shale tanks with catch tank as well as custom applications inside our 20' and 30' combination centrifuge stand/shale tank
Dimensions: H 44" (Min) 52"(Max) x L 120" x W 78" (17.3cm(Min) 20.5cm(Max) x 47.2cm x 30.7cm)
Weight: 2500lbs / 1136kgs (Excluding catch tank)

SHALE TANKS

Drive-in type
Super heavy duty construction "triple skid"
Shale Dryer Systems available for use in these tanks.
Dimensions: 40 'L X 10' W X 4' H

SHALE TANKS/CENTRIFUGE STAND (30')

Includes centrifuge stand (adjustable to 14' high)
Shale Dryer Systems available for these tanks using base for fluid recovery
Ideal for oil mud (loader wheels stay outside tank)
Capacity: Liquid capacity 8.0 cubic metres
Dimensions: Top deck 14' wide X 30' long
Dimensions: 32 ' L X 10' W X 11' H Weight 28,000 lbs / 12,725 kgs

SHALE TANKS/CENTRIFUGE STAND (20')

Includes centrifuge stand (adjustable to 14' high)
Ideal for oil mud (loader wheels stay outside tank)
Reduced lease size
Not necessary to bury a catch tank
Solids are in one place
A safer, environmentally friendly work area
Shale Dryer Systems available for these tanks using base for fluid recovery
Capacity: Liquid capacity 5.0 cubic metres easy rig up
Dimensions: Top deck 12.5' wide X 20' long
Dimensions: 22 ' L X 10' W X 11' H Weight 18,000 lbs / 8180 kgs

HIGH SIDE DRIVE-IN SHALE TANK

*NEW* 40' L X 11' W ( ID ) X 8' H
Storage of Cuttings
Drive-in style
Easily tarped over for storage
Large capacity saving space on lease
Dimensions: 40' L X 10' W ( ID ) X 8' H

POLYSHEARS

Polyshear Mixers
Usages: Quick mix polymers, clays or chemicals to a smooth homogeneous mixture. Fast complete blending of viscosifiers, XC, XCD polymers, drispac, etc. Eliminates shaker screen blinding from "fish eyes" or unmixed product.
Sizes: Available in 6 inch (152mm) and 4 inch (102 mm) sizes
6" - Overall Length: 30" (cut out 36 1/4") - Shipping weight: 100lbs (45.5 kg)
4" - Overall Length: 24" (cut out 30 1/4") - Shipping weight: 60lbs (27 kg)
Power Shears
Motor driven shears are also available if mixing pump volumes are too low

EQUIPMENT/SAMPLE WASHER

Power: 5 H.P, 3 phase, 208 V XP rated motor/ Belt driven CAT triplex pump.
Clear blinded rig shaker and shale dryer screens
Sample Washing
General Cleanup around rig
Modified low pressure screen cleaning units available that reduce vaporization of cleaning agents
Dimensions: 1 cubic meter tank

SCAVENGER SYSTEMS

The Scavenger DFRS System allows operators to run finer screen selection, unlike alternative systems on the market today, eliminating the screening down effect seen in those systems.
The Scavenger System uses oscillating air flow which stops cuttings on an interval, allowing the vacuum to strip the cutting of the fluid, releasing it to travel down the shaker. This system eliminates the "fluid" cushion on the screen, which is immediately by the vacuum.
The Scavenger System, with patented oscillating system does not cause the cutting/s to stick to the screen or for them to be splintered into fine materials which can then pass through the screen

OTHER

FANS

42" Rig Fans

Usage: Removes toxic vapours from the top of mud tanks, and provides clean air for a safe working environment
110/220 volt explosion proof electric motor c/w 50m cab tire
Dimensions: 42" in diameter
Weight: 50 kg
